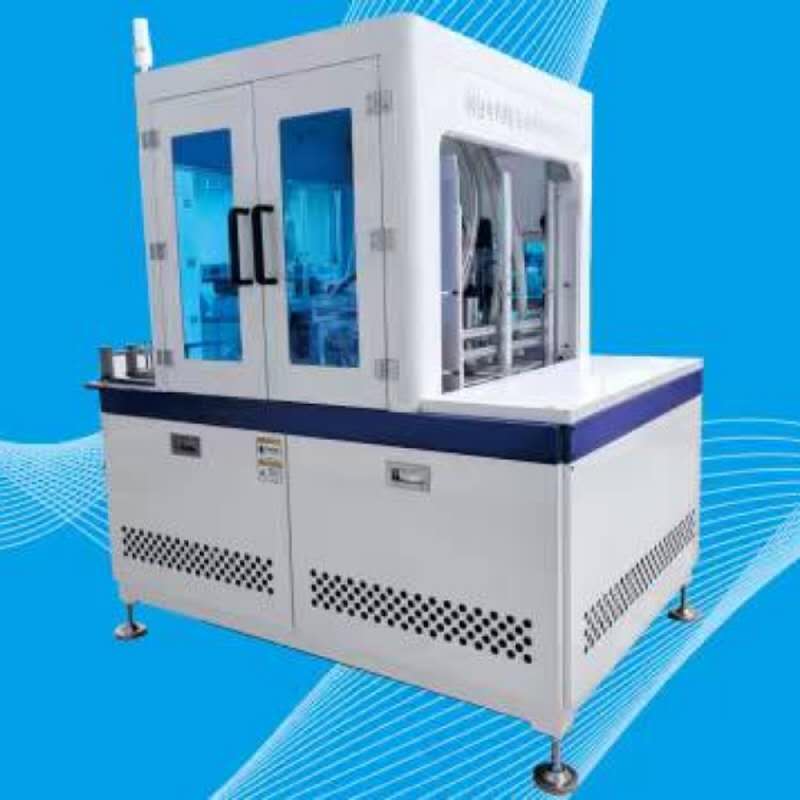

JR-1208 Drilling and pasting magnet & iron sheet on the edge of Cigarette surround

Products

Keywords :

magnet pasting machine / iron sheet sticking machine / drilling machine

Hits : 21
Company : Dongguan Jurong Intelligent Machinery Co.,Ltd
Telephone : +86 180 0296 1378

Product Details

Contact Us

Five Advantages Of Products

drilling and pasting magnets or iron sheets on the edge of the cigarette surround
can be used for greyboard
can be connected with positioning machine
using the vibrating disc to supply material
also can be used for medium-density fiberboard

Product Details

Dimension : 1600*1150*1650 mm

Weight : 600 KG

Power : 4KW

Production Speed : 20 ~ 40 pcs/min

Power Supply : 220 V

Air Pressure : Above 0.6 Mpa

Max.Spacing for Magnet & Iron Sheet Installation : 500 mm

Min.Spacing for Magnet & Iron Sheet Installation : 75 mm

Min. Drilling Spacing : 75 mm

Max. Diameter of magnet / iron sheet : Φ 18 mm

Min. Diameter of magnet / iron sheet : Φ 8 mm

Max. Paperboard Size : 850*60 mm

Min. Paperboard Size : 100*20 mm
